Lithium Battery Scrap Recycling System

A system for recycling waste batteries, where discharged and electrolyte-removed batteries are first crushed, then milled for the second time to separate 80% of the separator film, and finally milled a third time to recover 99% high-purity Al, Cu, and black powder using a separator.

Main Text

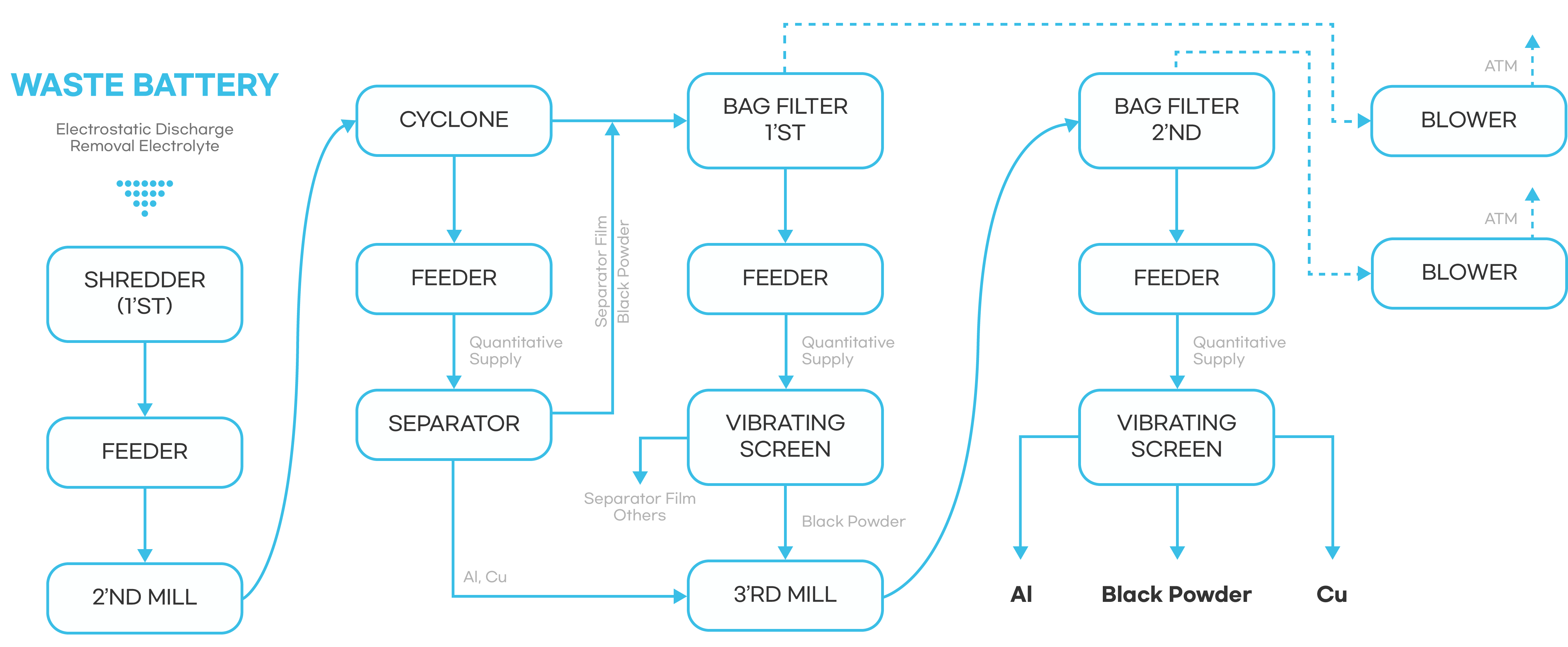

System Flow

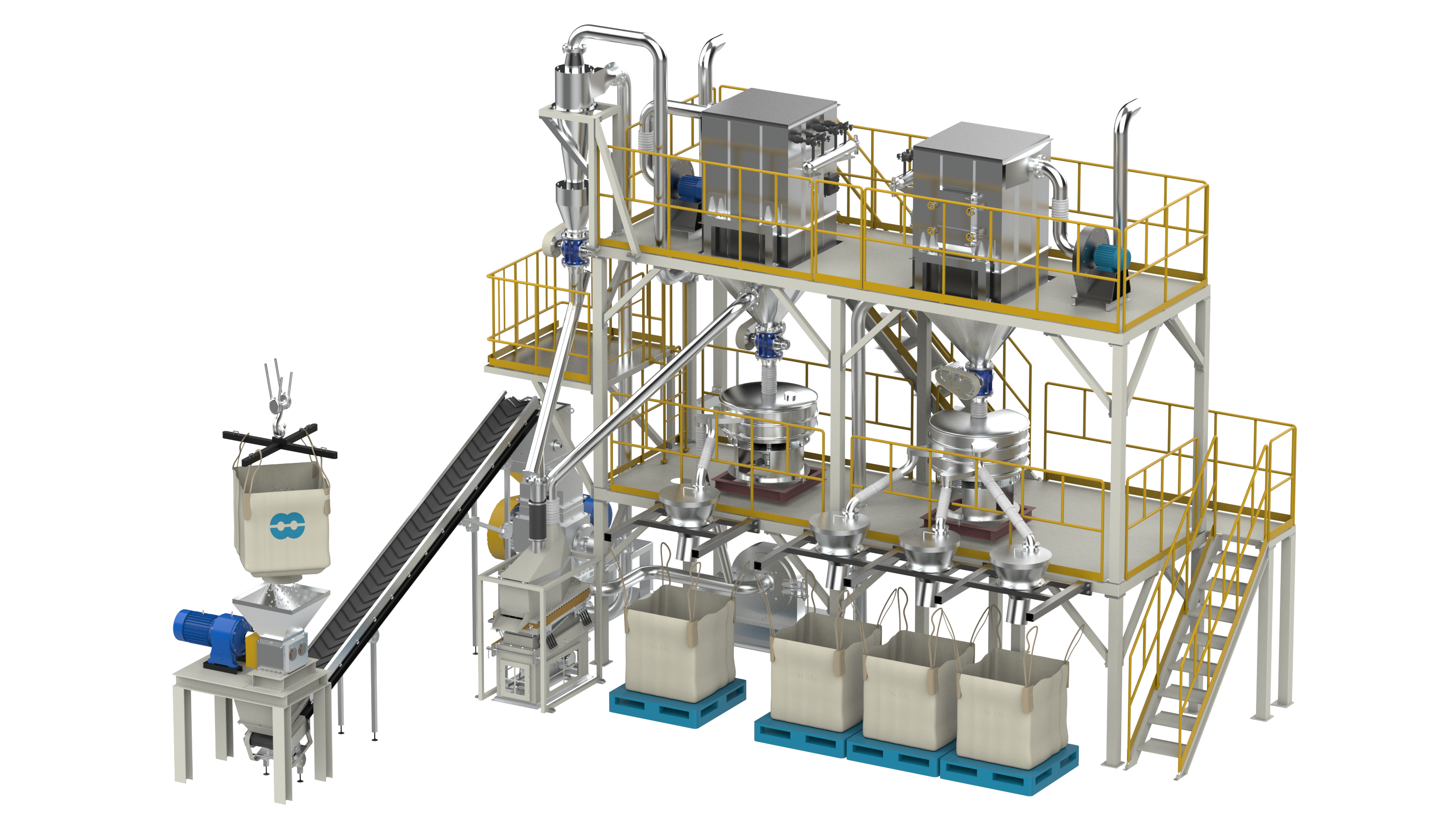

Installation Image

Characteristics

  • High recovery rate of black powder from waste batteries (over 99%)

  • High removal rate of separator film, resulting in Cu and Al purity of over 98%, making the process economically viable.

  • During secondary milling, impurities are removed, ensuring smooth discharge of milled materials and securing the durability and wear resistance of the equipment.

  • Automated process ensures an excellent factory environment.

  • Application

  • Recycling of primary batteries (alkaline) and secondary batteries (pouch, prismatic, cylindrical, and defective anode and cathode materials).

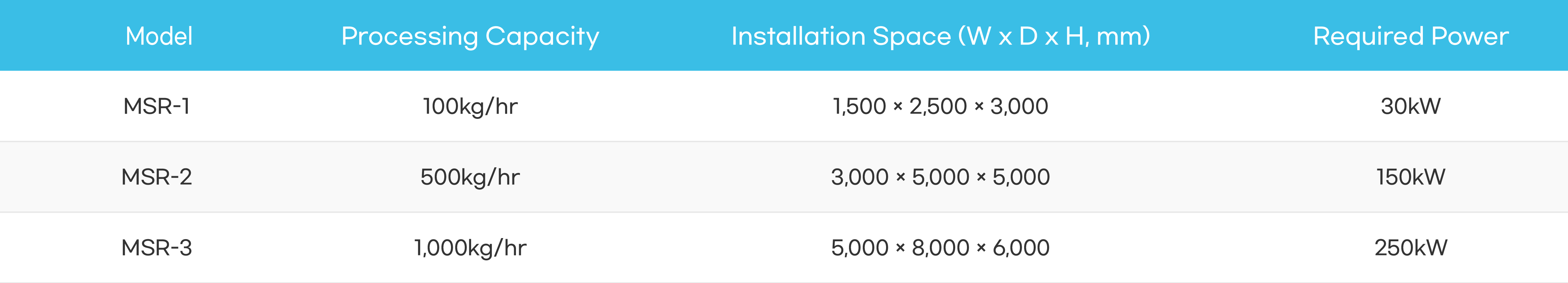

  • Dimension
