System Applied to High-Performance Permanent Magnet Production Line Classification Jet Mill System Using Inert Gas

A system that uses inert gas in a Vertical Jet Mill to mill and classify oxidation-prone rare earth alloy materials (NdFeB, neodymium permanent magnet powder) to a level of 3.0㎛ (d50), producing high-performance permanent magnets with enhanced coercive force.

Main Text

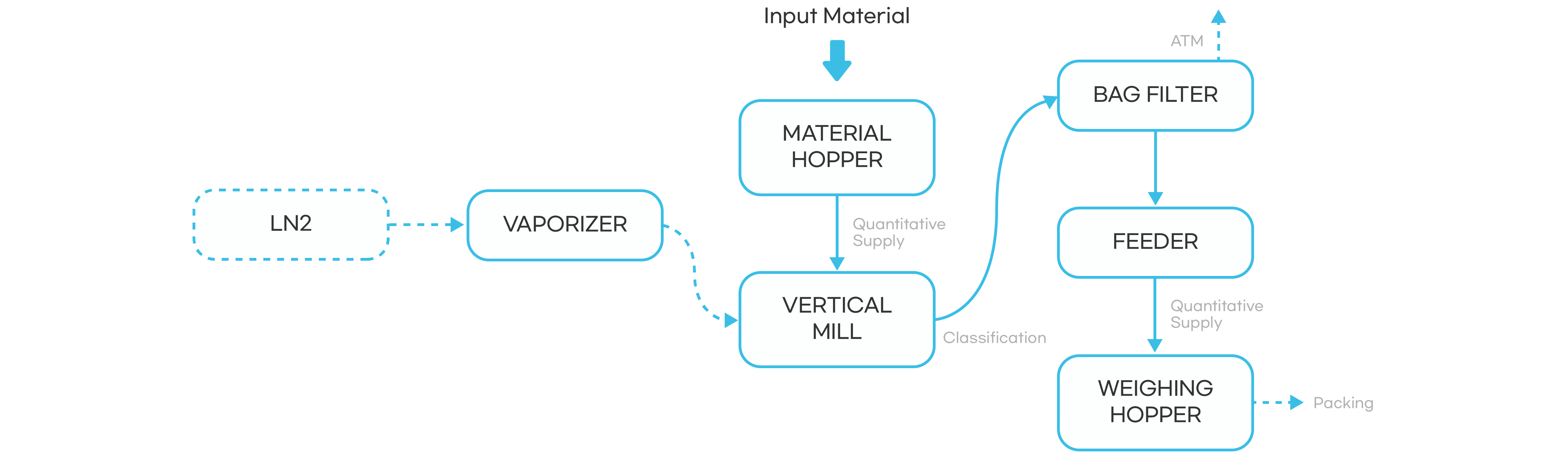

System Flow

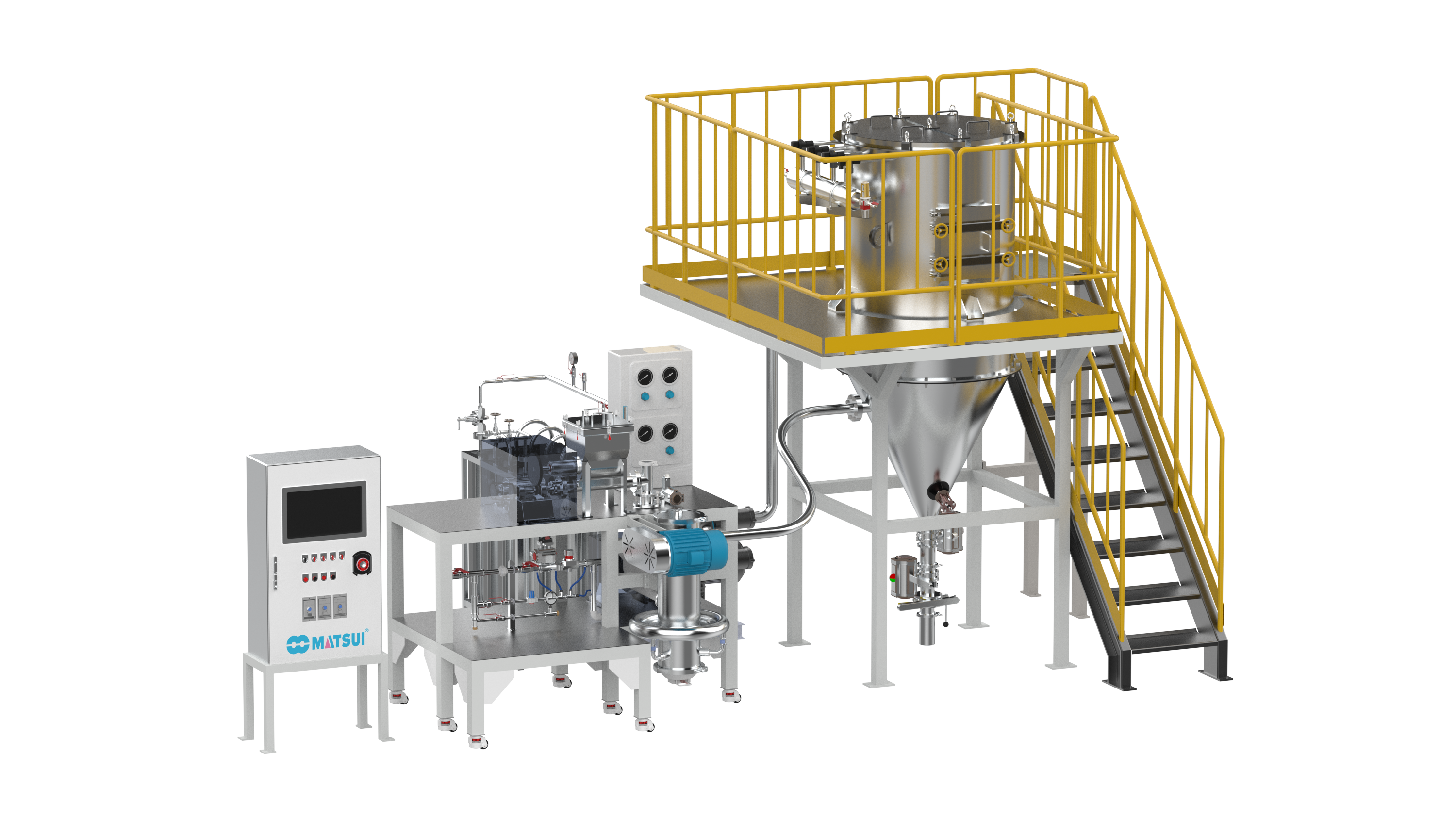

Installation Image

Characteristics

  • Stable production through milling & separating processes in an inert gas environment

  • Grinding occurs in an oxidation-preventing state, free from moisture and air contact

  • Particles not ground by the classifier during the grinding process are recirculated for continuous regrinding

    • Application

  • Possible applications within the same system include:

  • Micron-level fine grinding of epoxy resin

  • Micron-level fine grinding of Ag powder

  • Micron-level fine grinding of anode powder

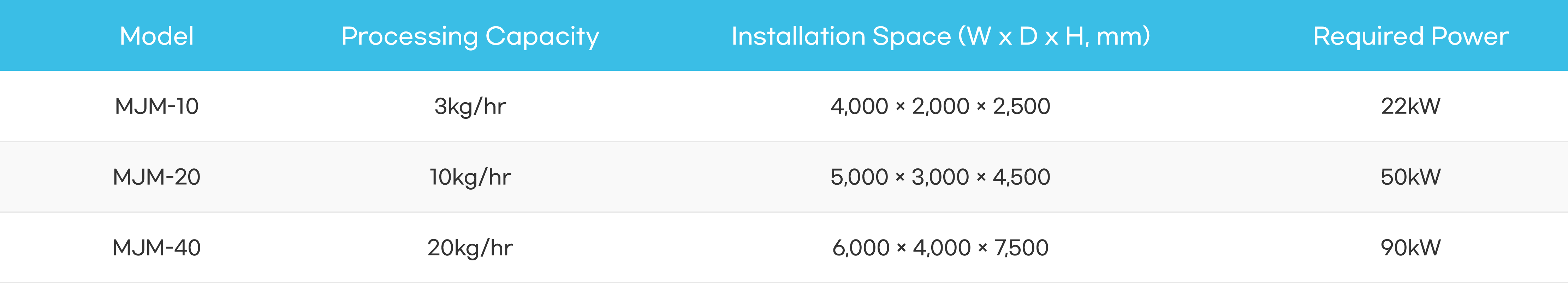

    • Dimension
