Milling System for High-Hardness Materials Silicon Carbide Milling System

A system utilizing a Jaw Crusher to mill Silicon Carbide, fused to carbon rods with a Moh's hardness of 10, into various sizes for different applications. The system also supplies the decarburization process without contamination from iron-based impurities.

Main Text

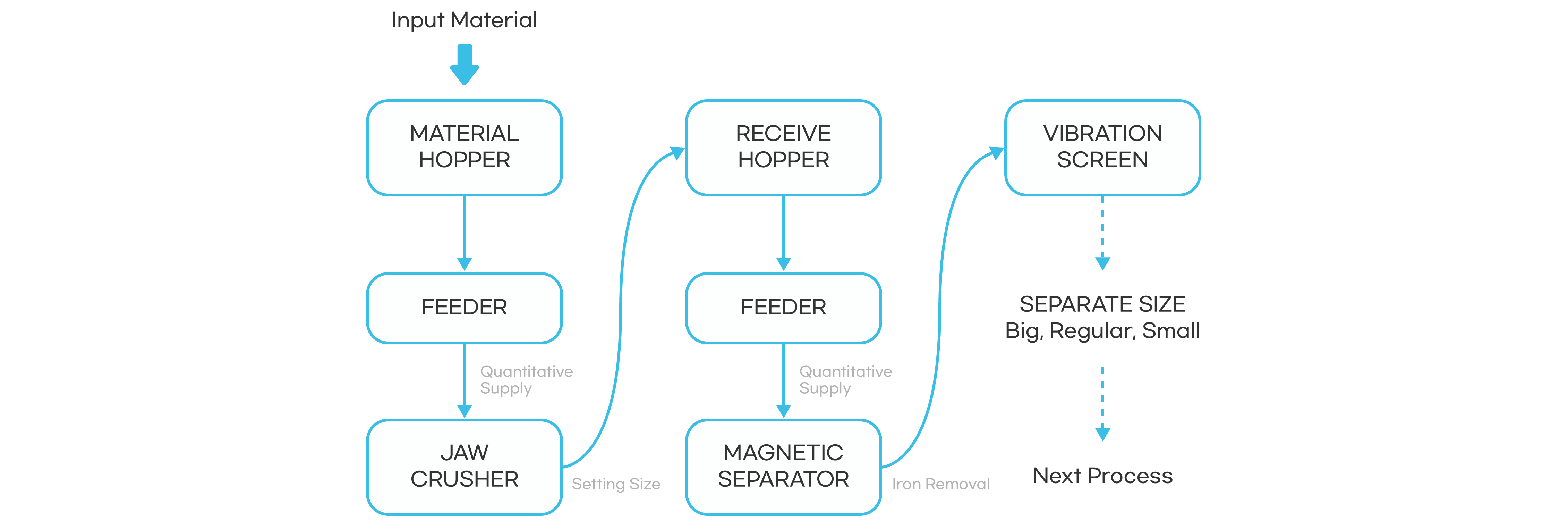

System Flow

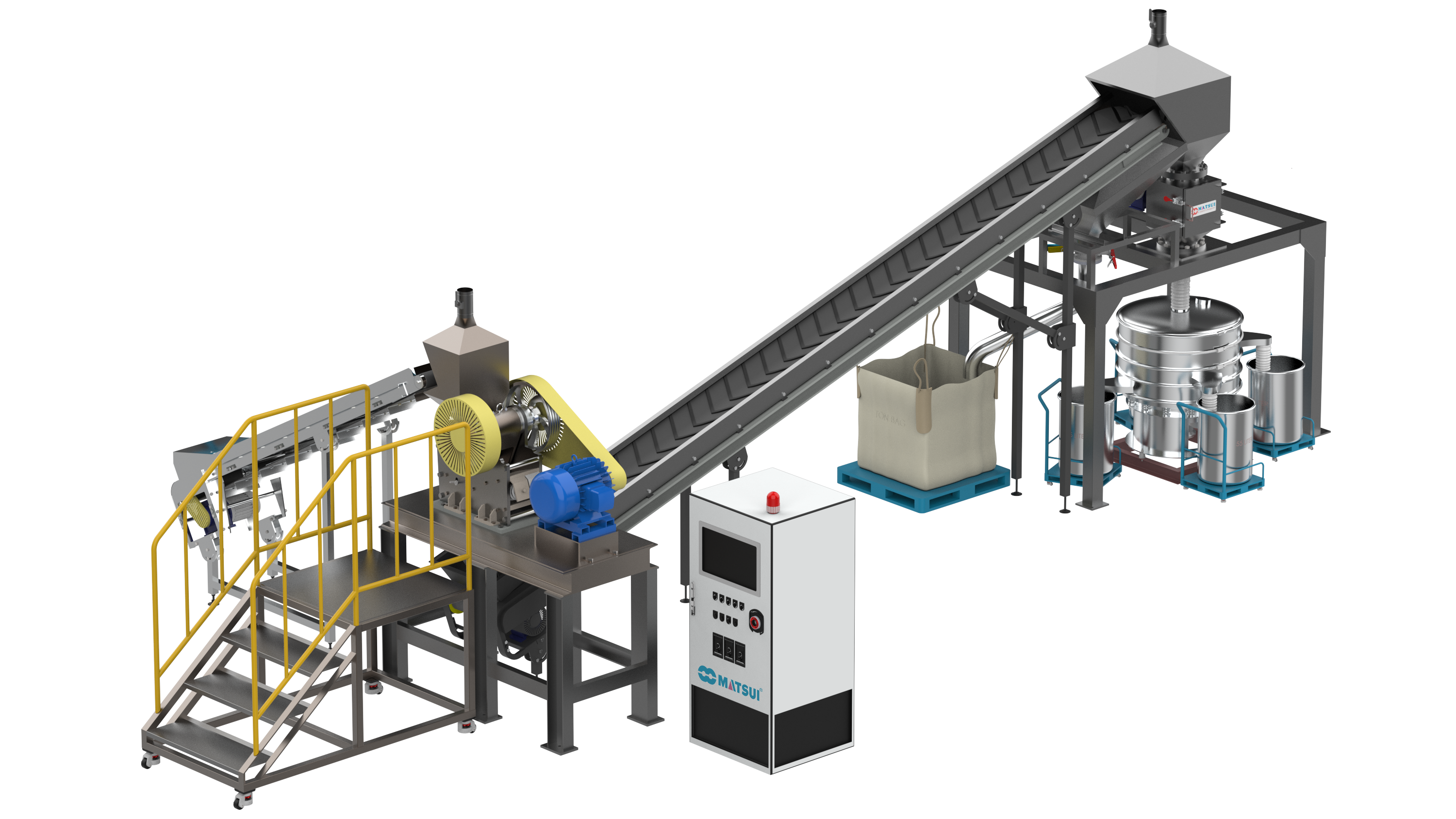

Installation Image

Characteristics

  • Milling high-hardness materials to a consistent particle size

  • Easy adjustment of particle size according to the application

  • Prevention of foreign material contamination during the process

    • Application

  • Milling of high-hardness materials

    Silicon Carbide (ø60×250L) 3mm Under
    Metal Silicon (ø250) 10mm Under
    Mineral Ore (ø500) 10mm Under
    Glass Scrap (ø250) 10mm Under

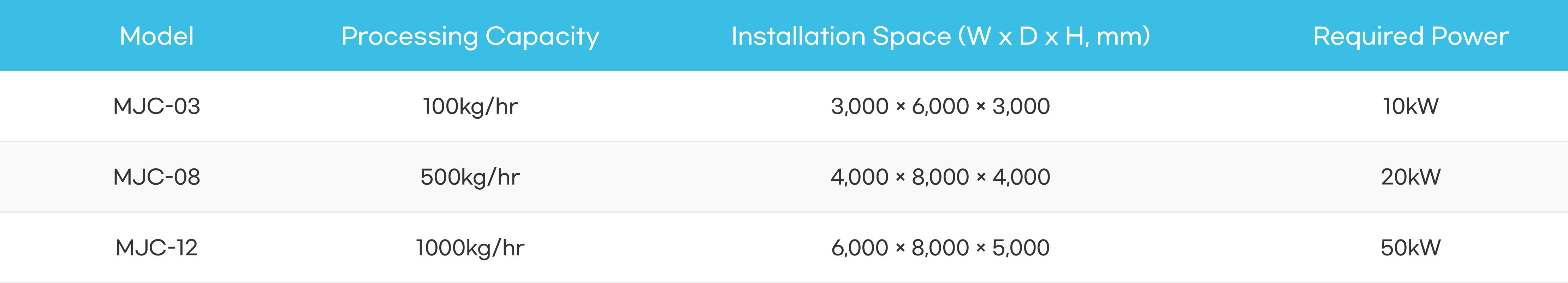

    • Dimension
